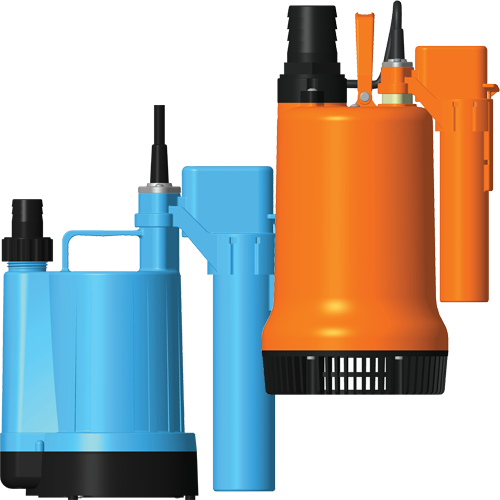

SDG Series – Submersible Dewatering Pumps 240V

Aquaplus SDG Series 240V pumps are suitable for applications such as sea water, cellar or basement drainage, storm water drainage, pool circulation or aquaculture.

SDG Series – Submersible Dewatering Pumps 240V
  • Features
  • Applications

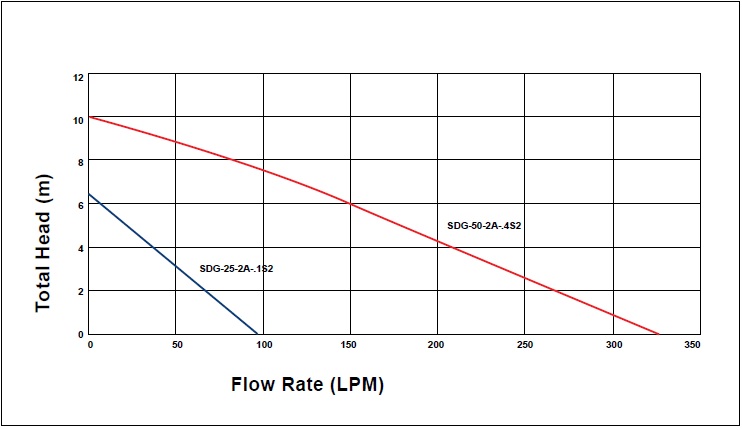

  • Curves
  • Tech Specs
  • Dimensions
  • Single phase 240V pump
  • Small robust pump
  • Automatic motor protection
  • Double mechanical seal in oil bath
  • Reinforced polymer / non-corrosive housing
  • Manual / Auto vertical float
  • Suitable for sea water
  • Cellar or basement drainage
  • Storm water drainage
  • Tank / pool / pond pump out /circulation
  • Fish breeding / aquaculture
  • Emergency pump out down to 2mm
    (SDG-25-2A-.1S2-10AVP-O)

Model Number Discharge (mm) Power (kW) Voltage (V) Cable (m) Max Flow (L/s) Shut-Off Head (m) Pump Weight (kg) Max Solid (mm) Rated Current A (415 V)
Automatic / Manual
SDG-25-2A-.1S2-10AVP-O 25 0.1 230 10 95 6.5 4.1 2 1.01
SDG-50-2A-.4S2-10AVP-O 50 0.4 220 10 315 10 9.1 2.5 3.4

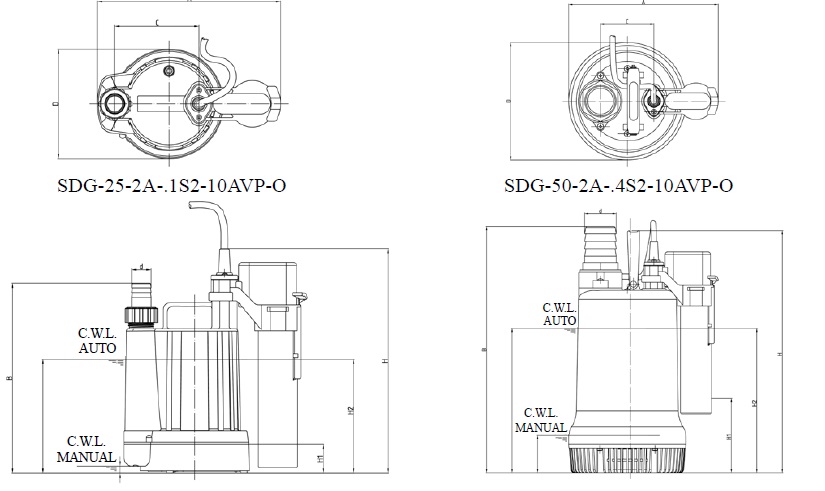

Model Dimensions (mm
D h A B C h1 h2 d C.W.L Manual C.W.L Auto
Automatic / Manual
SDG-25-2A-.1S2-10AVP-O 139 286 232 242 106 38 140 19/25 2 145
SDG-50-2A-.4S2-10AVP-O 190 390 242 397 86.5 102 230 50 60 233
