ESD Series – Bare Shaft Pumps

The ESD Series Bare shaft Pumps are robust and reliable DIN pumps, ideal for your building services, irrigation, fire systems and mining applications. The DIN pump range is also available in motor pump and long-coupled configurations.

ESD Series – Bare Shaft Pumps
  • Features
  • Applications

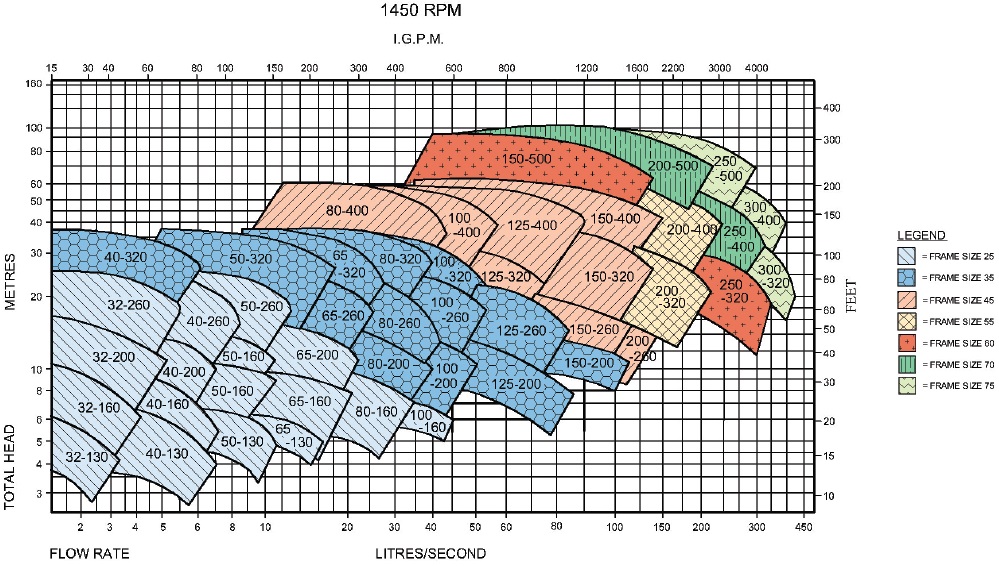

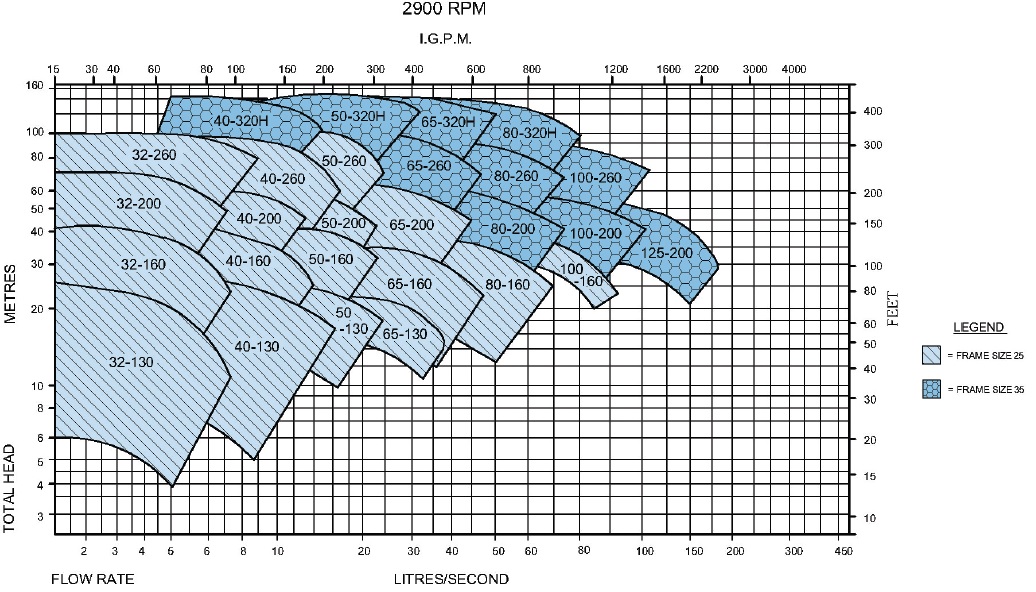

  • Curves
  • Tech Specs
  • Downloads
  • Extensive stock holdings Australia wide
  • Dynamically balanced impeller
  • Double shrouded impeller design
  • Back pull-out facility
  • Maximum operating pressure 1600kPa dependent on pump model
  • Maximum speed varies between 1500rpm and 3600rpm dependant on pump size and method of drive
  • Maximum temperature with standard mechanical seal shaft sealing arrangement -10°C to 120°C
  • Cast metal casing with integrally cast feet
  • Re-usable casing o-rings
  • Shaft carried in grease lubricated bearings (oil lubrication available on request)
  • Cast iron bearing housing
  • Shaft sealing is standard as mechanical seal with stainless steel shaft sleeve (packed gland available on request)
  • Replaceable wear rings fitted to all volutes
  • Removable support foot at drive end for greater rigidity
  • Pumps manufactured to the German Standard DIN 24255 (EN 733)
  • Building Services: condenser water, heating water, chilled water
  • Mining: transfer and processing applications
  • Irrigation
  • Commercial swimming pools
  • Fire protection

CI/CI/MS, CI/Br/MS

Model Number Suction (mm) Discharge (mm) Min Impeller (mm) Max Impeller (mm) Pump Frame Size Pump Weight (kg) Max Operating Speed (rpm)
ESDB-32-130 50 32 100 139 25 27 3600
ESDB-32-160 50 32 125 174 25 35 3600
ESDB-32-200 50 32 165 214 25 41 3600
ESDB-32-260 50 32 205 264 25 59 3600
ESDB-40-130 65 40 100 139 25 30 3600
ESDB-40-160 65 40 130 174 25 42 3600
ESDB-40-200 65 40 165 214 25 49 3600
ESDB-40-260 65 40 205 264 25 67 3600
ESDB-40-320 65 40 255 329 35 96 2300
ESDHB-40-320 65 40 255 329 35 96 2900
ESDB-50-130 65 50 110 139 25 34 3600
ESDB-50-160 65 50 130 174 25 38 3600
ESDB-50-200 65 50 165 214 25 51 3600
ESDB-50-260 65 50 205 264 25 63 3600
ESDB-50-320 65 50 255 329 35 101 2300
ESDHB-50-320 65 50 255 329 35H 101 2900



Model Number Suction (mm) Discharge (mm) Min Impeller (mm) Max Impeller (mm) Pump Frame Size Pump Weight (kg) Max Operating Speed (rpm)
ESDB-65-130 80 65 130×15 139 25 39 3600
ESDB-65-160 80 65 125 174 25 43 3600
ESDB-65-200 80 65 165 214 25 70 3600
ESDB-65-260 80 65 205 264 35 84 3600
ESDB-65-320 80 65 255 329 35 110 2300
ESDHB-65-320 80 65 255 329 35H 110 2900
ESDB-80-160 100 80 140×18.5 174 25 54 3600
ESDB-80-200 100 80 165 214 35 70 3600
ESDB-80-260 100 80 205 264 35 91 3600
ESDB-80-320 100 80 255 329 35 111 1800
ESDHB-80-320 100 80 255 329 35H 111 2900
ESDB-80-400 100 80 320 409 45 161 1800
ESDB-100-160 125 100 157 174 25 71 2900
ESDB-100-200 125 100 165×9.5 214 35 85 3600
ESDB-100-260 125 100 205 264 35 106 3600
ESDB-100-320 125 100 255 329 35 111 1800
ESDB-100-400 125 100 320 409 45 174 1500
ESDB-125-200 150 125 190×18.5 214 35 106 3600
ESDB-125-260 150 125 205×8.5 264 35 115 1800
ESDB-125-320 150 125 255 329 45 163 1800
ESDB-125-400 150 125 320 409 45 181 1500
ESDB-150-200 200 150 200×10 214 35G 156 1800
ESDB-150-260 200 150 205 264 45 148 1800
ESDB-150-320 200 150 255 329 45 168 1800
ESDB-150-400 200 150 320 409 45 209 1500
ESDB-150-500 200 150 400 500 60 320 1800
ESDB-200-260 250 200 250 264 45A 206 1800
ESDB-200-320 250 200 285 329 55 251 1800
ESDB-200-400 250 200 335 409 55 295 1800
ESDB-200-500 250 200 460 500 70 410 1500
ESDB-250-320 300 250 285 329 60 311 1800
ESDB-250-400 300 250 335 409 70 390 1800
ESDB-250-500 300 250 450 500 75 516 1500
ESDB-300-320 350 300 317 352 75 660 1800
ESDB-300-400 350 300 374 415 75 700 1800
