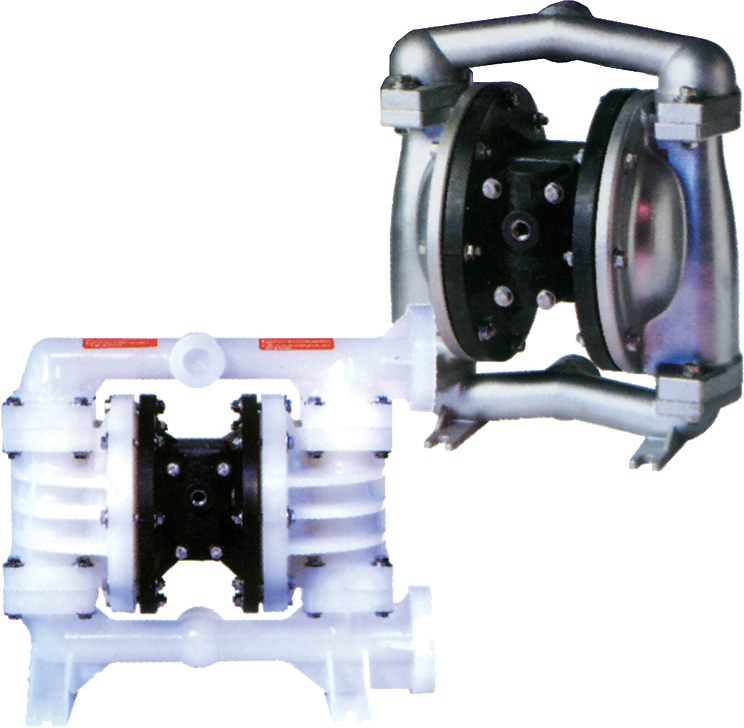

AD Series

Aquaplus AD Series Pumps are performance engineered and quality built to provide service under the toughest conditions. The Series is operated by compressed air or any non-flammable compressed gas and is suitable for a variety of applications in a range of industries.

We specialise in:

Plastic Models
  • Polypropylene / Santoprene®
  • Polypropylene / PTFE
Metalic Models
  • Aluminium / Geolast®
  • Aluminium / PTFE
AD Series
  • Features
  • Applications
  • Curves
  • Tech Specs
  • Dimensions
  • Downloads
  • Pumps anything that pours
  • Wide range of pump types and sizes
  • Patented lube-free air system
  • Will not stall at slow speeds
  • 100% tested prior to shipment
  • Self-priming
  • Non electrical
  • Runs dry without damage
  • Infinitely variable flow rate
  • Intermittent operation or continuous duty
  • Pumps fluids which contain particles
  • Pumps high viscosity fluids
  • Reduced solvent flash-off
  • Simple modular design
  • Dual manifold capability for 6mm to 25mm modules
  • Parts interchangeability between models and sizes
  • Mining
  • Construction
  • Municipal and commerce
  • Shipping yard
  • Wind energy
  • Waste processing
  • Manufacturing
  • Bio diesel
  • Offshore oil and gas
  • Rural applications
  • Agriculture
  • Food processing
  • Gas extraction
  • Chemical processing
  • Pharmaceutical
  • Refinery
  • Oil and gas
  • Liquid removal and storage

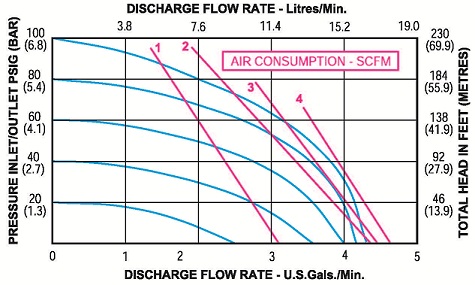

6mm Range Performance Curves

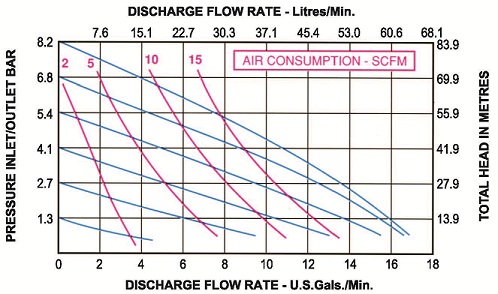

15mm Range Performance Curves

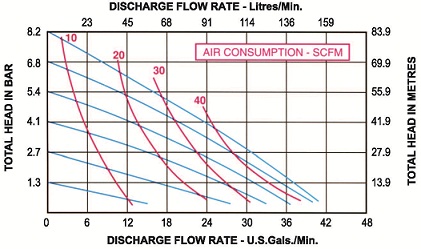

25mm Range Performance Curves

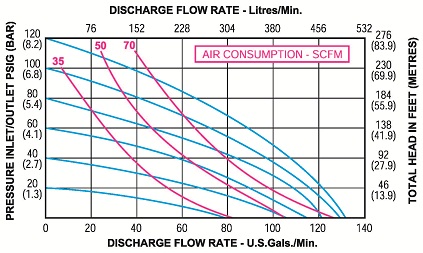

40mm Range Performance Curves

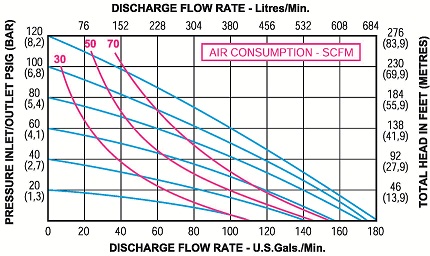

50mm Range Performance Curves

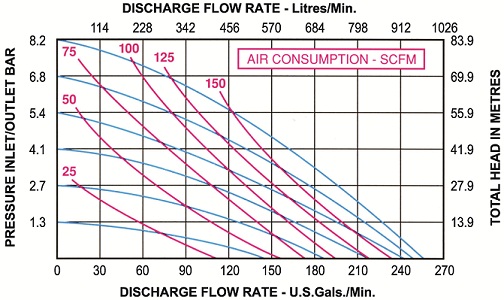

80mm Range Performance Curves

6mm Range 15mm Range 25mm Range
Capacity Adjustable 0 to 16.3 litres/min Adjustable 0 to 64.6 litres/min Adjustable 0 to 155.8 litres/min
Maximum Temperature KN-025 and KN-025E models 93°C
Other models 66°C
KT-05, KE-05 and KV-05 models 93°C
Other plastic models 66°C
AB-05 and SB-05 models 82°C
Other metallic models 100°C
KT-10, KE-10 and KV-10 models 93°C
Other plastic models 66°C
AB-10 and SB-10 models 82°C
Other metallic models 100°C
Maximum Air Pressure All models 6.8 bar All models 8 bar All models 8 bar
Minimum Air Pressure All models 1.3 bar All models 1.2 bar All models 1.2 bar
Dry Lift Capacity  at 6.8 bar
All models 5m
at 8 bar
Models with PTFE balls 3m
Other models 4.5m
at 8 bar
Models with PTFE balls 3m
Other models 4.5m
Maximum Solids  1.6mm Standard solids 3.2 mm
Optional Max-PassTM valves 9mm
Standard solids 6.4 mm
Optional Max-PassTM valves 19mm
Air Supply Inlet 1/4” BSP Female
Airflow control valve supplied
Outlet 1/4” BSP Female
Muffler supplied
Inlet 1/4” BSP Female
Outlet 3/8” BSP Female
Muffler supplied
Inlet 1/4” BSP Female
Outlet 3/8” BSP Female
Muffler supplied
Fluid Inlet/Discharge  1/4” BSP NPT compatible 1/2” BSP models Plastic models 1” flange ANSI/DIN compatible
Metallic models 1” BSP

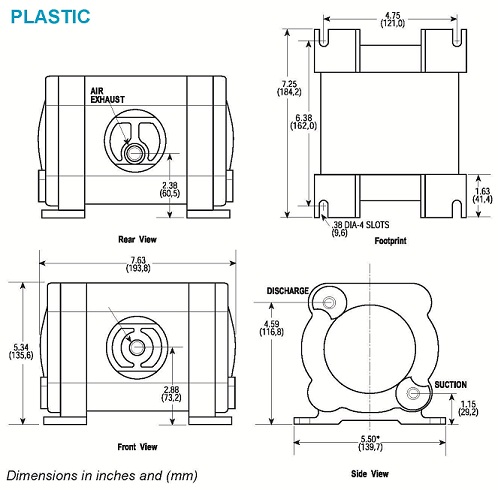

6mm Range Dimensions

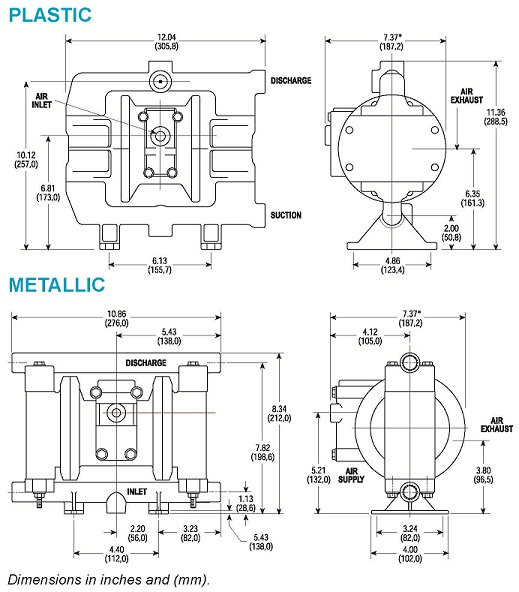

15mm Range Dimensions

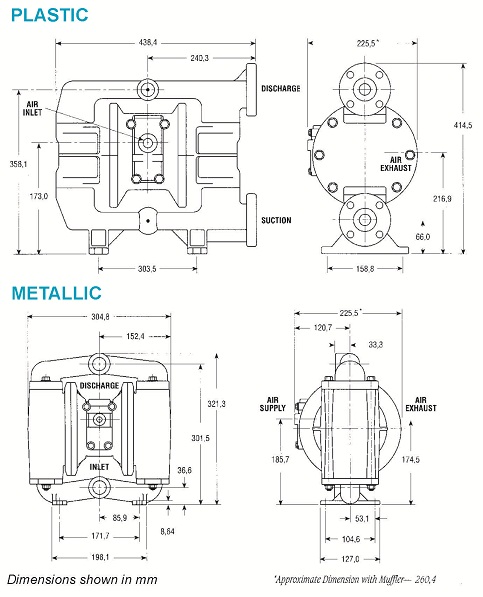

25mm Range Dimensions

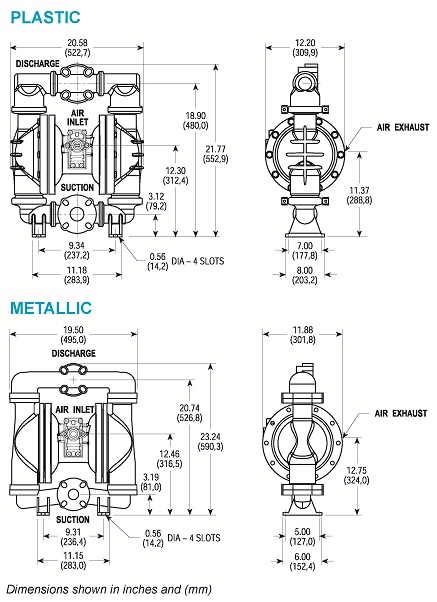

40mm Range Dimensions

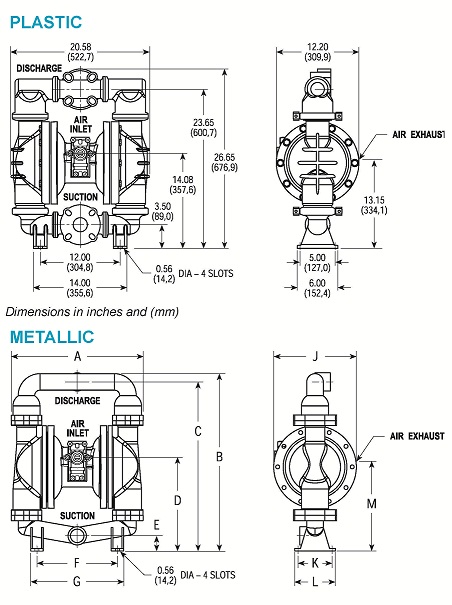

50mm Range Dimensions

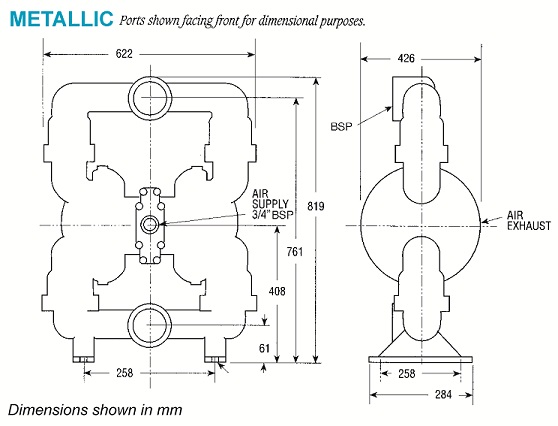

80mm Range Dimensions
